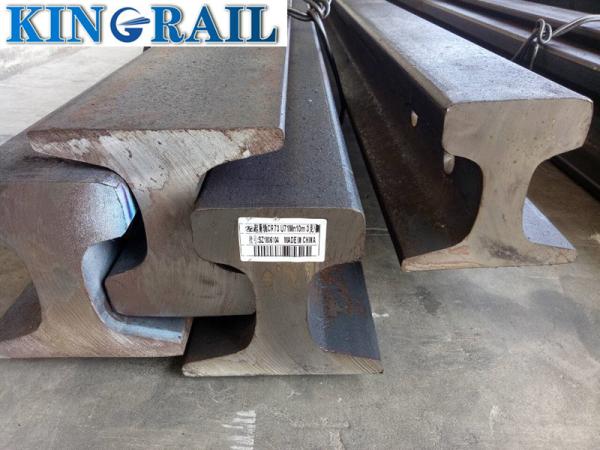

Q235B 55Q U71Mn Steel Track Rail ASCE 40 Lb/Yd

Product Categories

Maanshan Kingrail Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Q235B 55Q U71Mn Steel Track Rail ASCE 40 LbYd
Brand: Kingrail Parts
Price: 1 USD

Brand Name : Kingrail Parts

Model Number : ASCE 40 Rail

Certification : ISO

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000000000 ton

Delivery Time : 1-30 working days

Packaging Details : standard export package, or as per customer request

Weight : 19.84kg/m

Length : 12m~25m

Material : Q235B, 55Q, U71Mn

Standard : ASTM A1

Contact Now

40 lb asce rail, 30'0" drilled 2-1/2" x 5" for 3/4" x 3" BHON track bolts, 400 lbs each.

Size	Rail height(mm) A	Bottom Width(mm) B	Head Width(mm) C	Web Thickness(mm) t	Weight(kg/m)
ASCE40	88.9	88.9	47.6	9.90	19.84

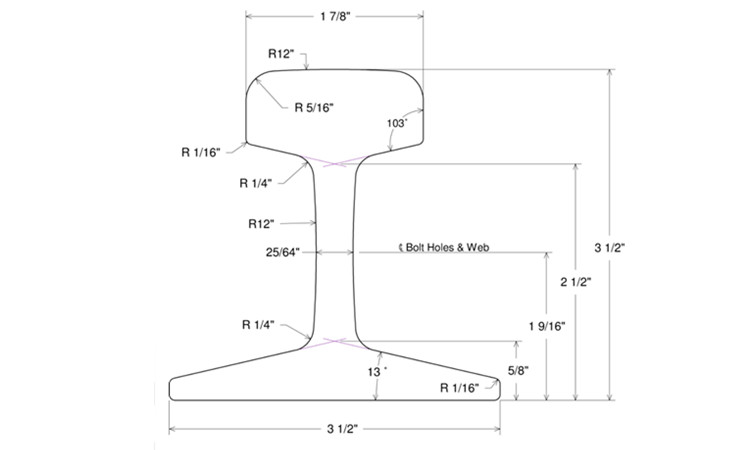

Drawing

Q235B 55Q U71Mn Steel Track Rail ASCE 40 Lb/Yd
