GB Standard Q235 Material Light Steel Rail 24KG

Brand Name : Kingrail Parts

Model Number : 24KG Light

Certification : ISO

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 1000000000ton

Delivery Time : 1-30 working days

Packaging Details : standard export package, or as per customer request

Material : Q235/55Q

Weight : 24.46Kg/M

Length : 6m-25m

Standard : GB11264-2012

Contact Now

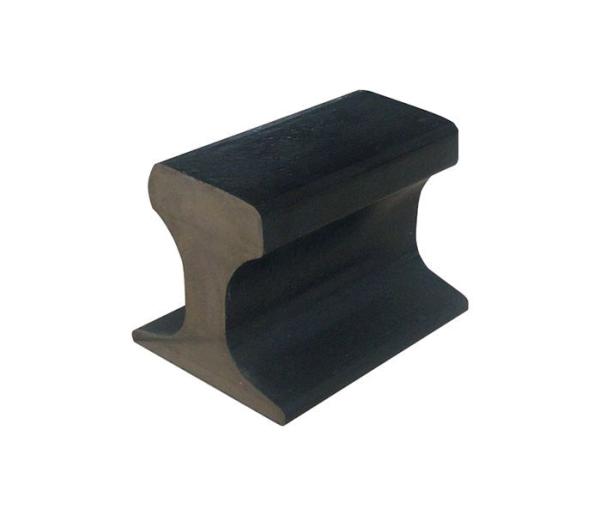

GB Standard 24KG Light Steel Rail

24kg/m railway rails are used for mine dump trucks to transport ore, we have this stock all the time and can be shipped quickly, the materials are Q235 and 55Q, and the lengths are 6m, 8m and 10m.

Specification

type weight (kg/m) material length (m)
24kg 24.46 Q235/55Q 6-10m
rail height (mm) bottom width (mm) head width (mm) web thinkness (mm)
107 92 51 10.90

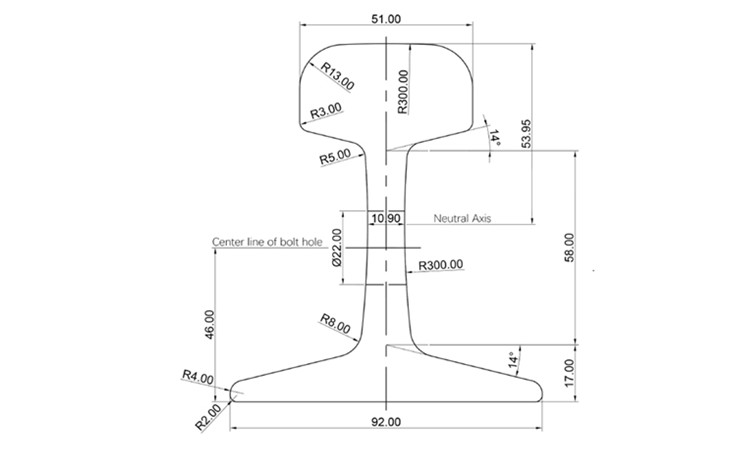

Drawing

GB Standard Q235 Material Light Steel Rail 24KG
