Name: ASCE 30 LbYd Steel Track Rail ASTM A1 Standard
Brand: Kingrail Parts
Price: 1 USD

Brand Name : Kingrail Parts

Model Number : ASCE 30 Rail

Certification : ISO

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000000000 ton

Delivery Time : 1-30 working days

Packaging Details : standard export package, or as per customer request

Rail Type : 30 AS

Nominal Weight : 25 lbs/yd

Standard Length : 30' (20' and 40' also available)

Standard Drilling : 2" x 4" with 3/4" diameter hole

Splice bar length : 16-1/8"

Splice bar weight: 6 lbs/pr with hardware : 6 lbs/pr with hardware: 8 lbs/pr

Track Bolts : 5/8" x 2-1/2"

Contact Now

30 lb new asce rails, 27'0" drilled 2" x 4", using 5/8" x 2-1/2" or 5/8" x 3" bolts, 270 lbs each.

Specification

Type	Dimension(mm)				Weight(kg/m)	Standard
Type	Head	Height	Base	Waist	Weight(kg/m)	Standard
ASCE 30	42.9	79.4	79.4	8.4	15.2	ASTM A1

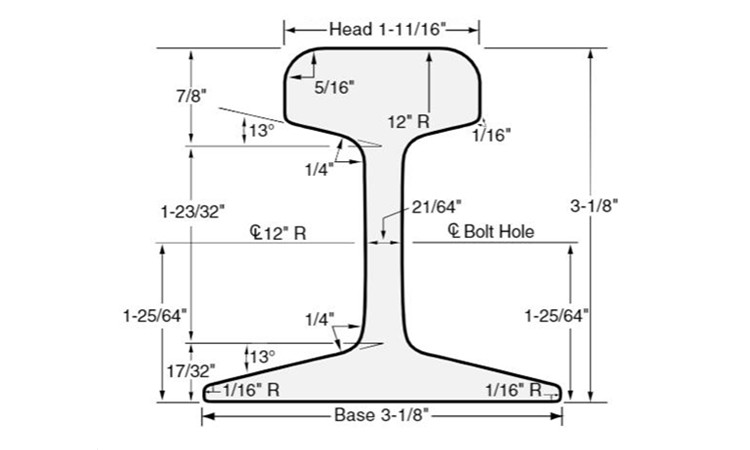

Drawing

ASCE 30 Lb/Yd Steel Track Rail ASTM A1 Standard
