Brand Name : Kingrail Parts
Model Number : A65 Rail
Certification : ISO
Place of Origin : China
MOQ : Negotiable
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Supply Ability : 1000000000 ton
Delivery Time : 1-30 working days
Packaging Details : standard export package, or as per customer request
Material : Q235B, 55Q
Standard : YB/T
Size : A65
Length : 6-12m or other lengths as required by customers
A65 Crane Rail is commonly used in a variety of applications such as tram rails, crane rails, mining rails, etc.
Kingrail Parts' A65 Crane Rail is manufactured to DIN standards (German Standards Institute) and is available in 12m lengths.
Specifications:
A65 Rail Parameters | |||
Rail Type | Weight(Kg/m) | Material | Length(m) |
A65 | 43.1 | 700/900A/1100 | 10-12 |
Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
65 | 175 | 75 | 38 |

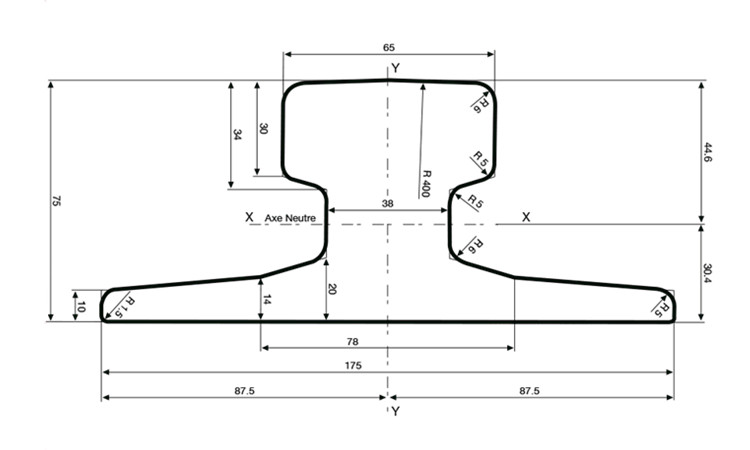

Drawings:
Get More Help
Please contact us for more information and a quote.
![]() |

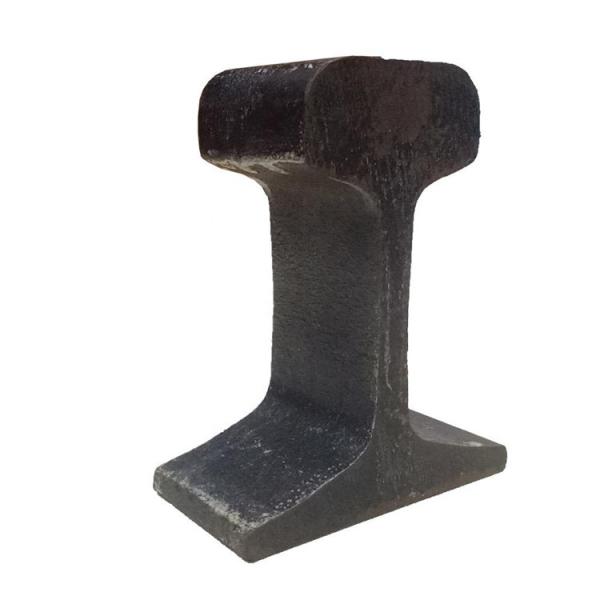

DIN536 900A A65 Crane Rail Length 6-12m Images |
